Detection of Bearing Failure in an Extruder Gearbox
Introduction
Following a prolonged history of gearbox failures, the customer decided to replace the existing spot measurement system with a more reliable online monitoring solution. The customers´ decision-making process was supported with open communication between the operator, the PROGNOST Systems team and the gearbox OEM.
Application

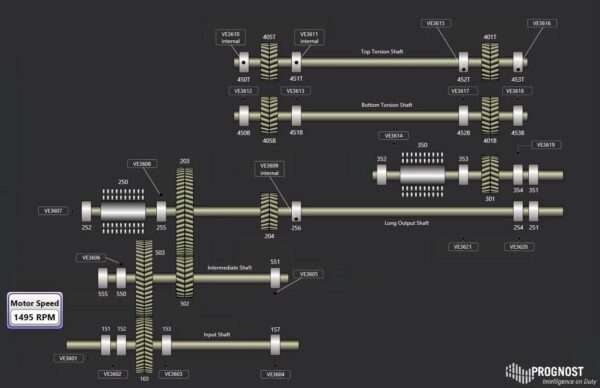

The gearbox overview in the PROGNOST®-Predictor GUI (Graphical User Interface) displays all components in one view. This makes it very convenient for the user to understand the layout of the gearbox and to locate a defective component.
The PROGNOST®-Predictor monitoring system paid off in a short time.
Diagnosis
Starting three months before the failure occurred, no indications were visible. In early August, the patented PROGNOST®-Predictor Confidence Factor raised, but no changes in the acceleration spectrum could be detected.
After the HFE spectrum was inspected, small peaks within the failure bands were visible what indicated an upcoming failure. This led to slowly increasing HFE and acceleration spectra over the next three months until the first warning level got violated in early November.
After this period of slowly increasing values (range of 0.1 m/sec²), the values increased significantly (starting with 0.1 m/sec ² to 2 m/sec²) within a couple days.
It wasn’t just a single sensor that indicated the issue — rather, it was the combination of multiple sensors and the unique Confidence Factor that ultimately pinpointed the problem as ‘bearing damage’.
This led to the decision to stop the gearbox which was done based on close communication between the user, the gearbox OEM and PROGNOST Systems diagnostic experts. In the following screenshots, the progression of the defect will be getting more visible.

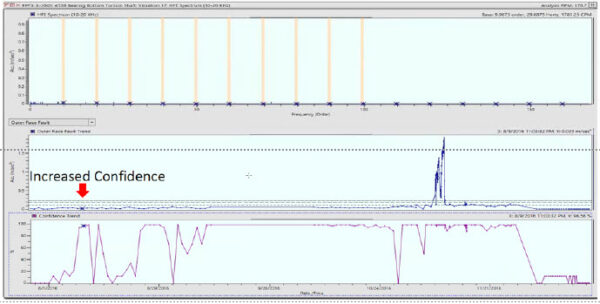

Increased Confidence Factor in Mid-August

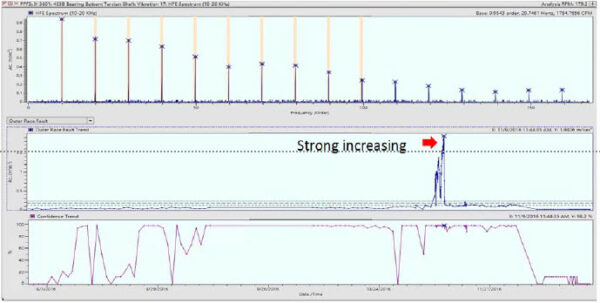

Strong increased Amplitudes a few days later

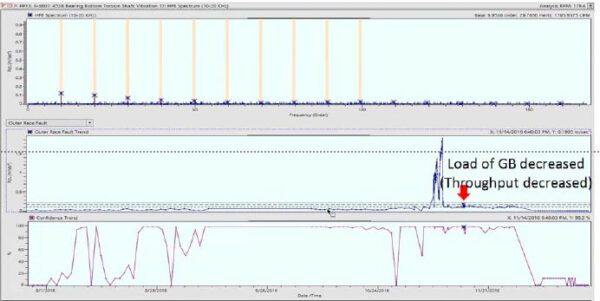

The load of the gearbox decreased / Throughput decreased

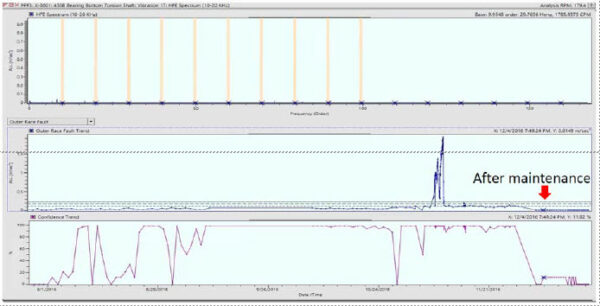

After maintenance, all values went back to normal condition

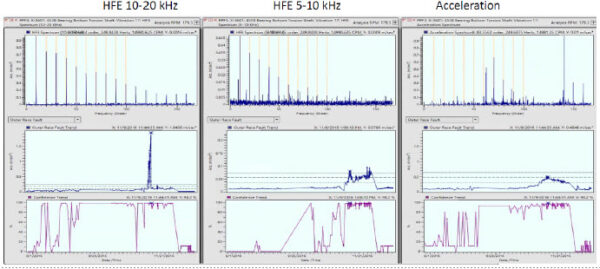

Comparison of HFE trends
Conclusion
A time period of three months just before any problem is visible on the gearbox showed how early and effective the PROGNOST®-Predictor detected the first indications of the upcoming failure. The time period and the continuous monitoring allowed the customer to schedule the required maintenance stop before the gearbox failed. The question here was when to shut down and what damage is acceptable.

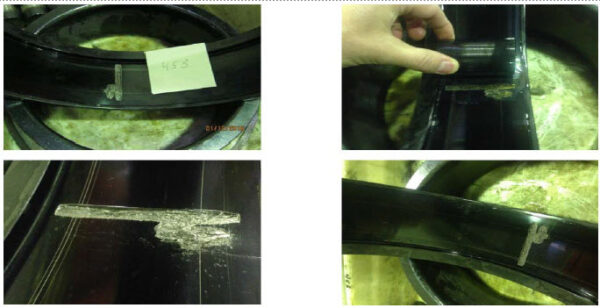

Damaged Bearing 453
Summary:
After repeated gearbox failures, a chemical plant replaced spot measurements with a PROGNOST®-Predictor online monitoring system.
The system detected early signs of bearing damage through a combination of sensor data and its unique confidence factor, even before acceleration values showed clear changes.
Over three months, increasing HFE and vibration signals led to a scheduled shutdown, preventing major damage.
The case highlights how continuous monitoring and early diagnostics enable timely maintenance decisions and improved reliability.
